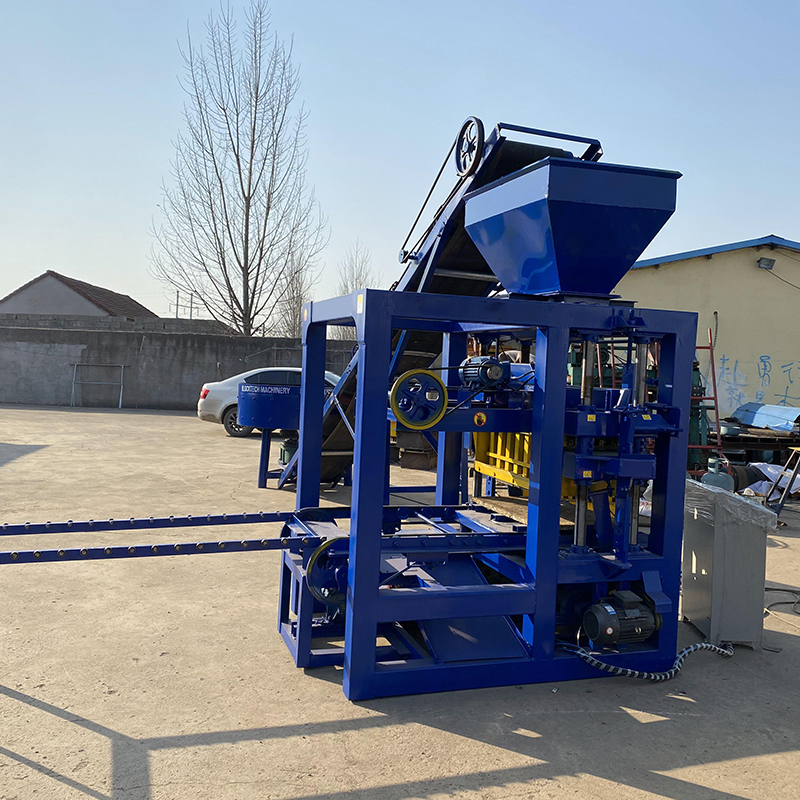

    QT4-24 Small Block Making Machine: A Cost-Effective Solution for Concrete Block Manufacturing

    The QT4-24 Small Block Making Machine offers an economical and innovative approach to producing high-quality concrete blocks. Designed for small to medium-scale operations, it serves as an ideal entry point for entrepreneurs and businesses in the concrete block manufacturing industry. This machine combines advanced hydraulic technology with intuitive controls, supporting the efficient production of various block types, such as hollow and solid blocks.

    Design and Structure

    The QT4-24 features a robust, compact design that facilitates effortless installation and operation across diverse construction sites. Its steel frame, complemented by cutting-edge welding technology, ensures longevity and operational stability. The machine comprises a main machine body, concrete mixer, belt conveyor, stacker, and a control system.

    Block Production Capacity

    Capable of producing a diverse range of concrete blocks, including solid blocks, hollow blocks, interlocking paver blocks, and curbstones, the QT4-24 can deliver a production capacity of approximately 4,000 to 5,000 blocks per 8-hour shift, subject to block size and design.

    Operation and Control

    As a semi-automatic machine, the QT4-24 requires manual involvement for loading raw materials and unloading finished blocks. Its user-friendly control panel simplifies the operational process and permits adjustment of block dimensions and production parameters, ensuring precise and consistent block production.

    • Pallet Size: 880x480mm
    • Quantity per Mold: 4pcs 400x200x200mm
    • Host Machine Power: 18kw
    • Molding Cycle: 26-35s
    • Molding Method: Platform Vibration
    • Host Machine Size: 3800x2400x2650mm
    • Host Machine Weight: 2300kg
    • Raw Materials: Cement, crushed stones, sand, stone powder, slag, fly ash, construction waste, etc.

    Block Size and Production Capabilities

    • Hollow Block 400x200x200mm: 4 pcs per mold, 410-550 pcs/hour, 3280-4400 pcs/8 hours
    • Hollow Block 400x150x200mm: 5 pcs per mold, 510-690 pcs/hour, 4080-5520 pcs/8 hours
    • Hollow Block 400x100x200mm: 7 pcs per mold, 720-970 pcs/hour, 5760-7760 pcs/8 hours
    • Solid Brick 240x110x70mm: 15 pcs per mold, 1542-2076 pcs/hour, 12336-16608 pcs/8 hours
    • Holland Paver 200x100x60mm: 14 pcs per mold, 1440-1940 pcs/hour, 11520-15520 pcs/8 hours
    • Zigzag Paver 225x112.5x60mm: 9 pcs per mold, 925-1250 pcs/hour, 7400-10000 pcs/8 hours

    Customer Photos, Packing, and Delivery

    For further inquiries or to place an order, contact us today to explore how the QT4-24 Small Block Making Machine can elevate your block production business to new heights.
